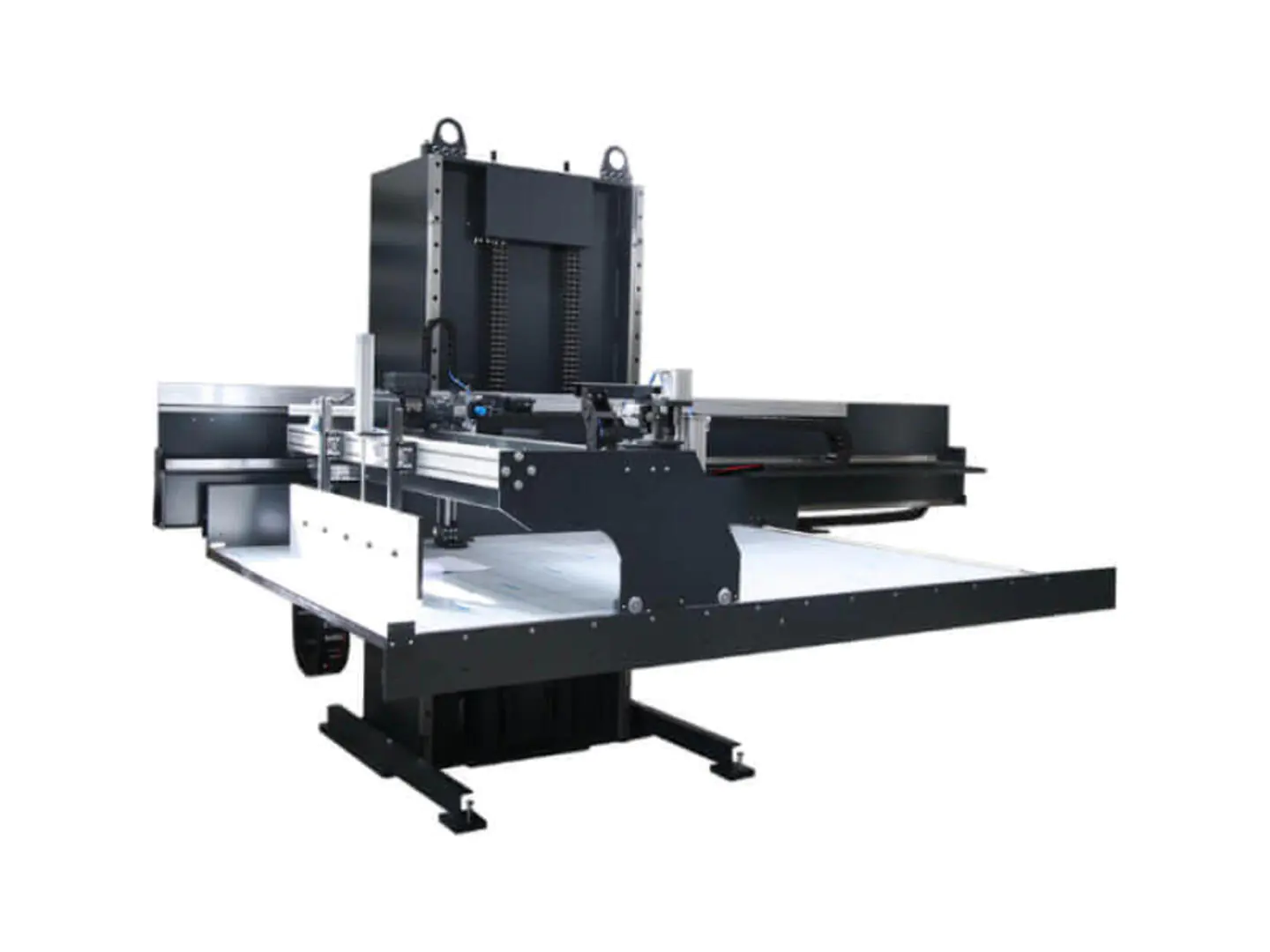

Loader BB

Working at full performance without physical load.
For automatic, rational loading of a High-Speed Cutter.

PERFECTA loaders serve for automating the separation of reams and their transport onto the high-speed cutter. Both by rear table loading with the aid of a pusher or a gripper clamp system and by manual or semi-automatic front table loading, the separated ream is always quickly and precisely fed to the high-speed cutter. Paper, cardboard, films and foils as well as printing plates can thus be handled by various unloading modes both lengthways and crossways.

Performance characteristics

Feature	BB 3	BB 5	BB 7	BB 3-P	BB 7-P
Max. paper format	770 x 1,070 mm	920 x 1,300 mm	1,250 x 1,650 mm	770 x 1,070 mm	1,250 x 1,650 mm
Max. layer height	160 mm	160 mm	160 mm	160 mm	160 mm
Max. pile height*	1,400 mm	1,400 mm	1,400 mm	1,400 mm	1,800 mm
Optional pile height	1,800 mm	1,800 mm	1,800 mm	1,800 mm	1,800 mm
Carrying capacity	150 kg	150 kg	150 kg	150 kg	150 kg
Connected load	9 kVA	9 kVA	11 kVA	9 kVA	11 kVA
Air demand	6 bar	6 bar	6 bar	6 bar	6 bar
Air consumption	30 NL	30 NL	30 NL	30 NL	30 NL

* in the standard configuration

Models & Features

Version BB-P:

Pile height 1,800mm by default
incl. destacking system with layer relieving

Optional equipment BB and BB-P:

Reflective light barrier with separating wedges
Pile height 1,800 mm (only BB)
Destacking by chips
Processing of two-ups
Pusher system in gripper arm or separate
Safety devices
Maintenance bolt to secure the table in upper end position

Optional for version BB-P:

Loader prepared for calculating the number of sheets
