High-Speed CutterPrecision and Perfomance
In combination with the newly developed Cutpit control system, operating the cutting machines is now even easier than before.
Another highlight is the newly developed cutting cell, which ensures significantly longer blade life thanks to an innovative damping system.

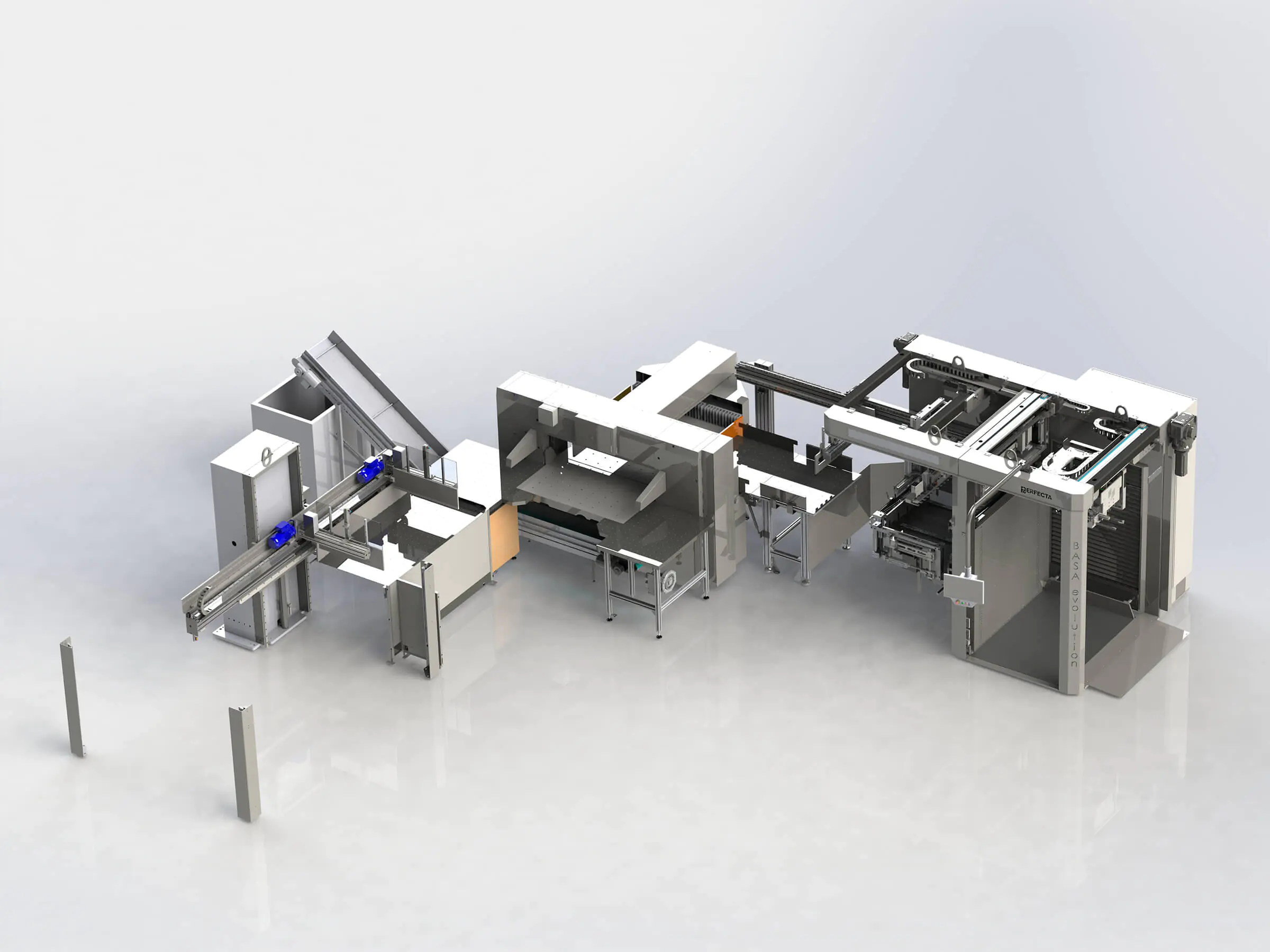

Thanks to the modular design, the cutting machines can be supplemented with additional peripheral devices, offering system solutions that extend all the way to fully automated cutting systems.
PERFECTA High-Speed Cutters at a Glance
Our high-speed cutters are available in three customizable standard models. Here, we’ve compared the most important features for you.
| Small formats | Medium formats | Large formats | |
|---|---|---|---|
| Basic Data | |||
| Width of the cutting table | 800 - 920 mm | 800 - 920 mm | 1.680 - 2,250 mm |
| Blade speed | 50 Schnitte/min | 44 cuts/min | 34 - 42 cuts/min |
| minimal residual cut | 18 mm | 20 mm | 26 - 110 mm |
| Controls and Electronics | |||
| Straight 2 Cut (S2C) | |||
| CuttronicPlus Software with Cutting Program Generator | |||
| Management-Informationssystem (MIS) | |||
| Cutting Tables | |||
| Larger Side Tables | |||
| Front Table Extension | |||
| Automatic Chip Removal (ASE) | Starting with the High-Speed Cutter 92 | ||
| Show Small Formats | Show Medium Formats | Show Large Formats | |
Quality Made in Germany
PERFECTA’s high-speed cutters are developed entirely in Germany and manufactured at our facility in Bautzen, Saxony. The robust basic design of the machine body ensures smooth operation and precise cutting results.
The parts and components used—such as the low-wear spur gear drive—are designed for continuous operation, allowing the cutting machines to be used around the clock, even in three-shift operations.
The highest safety standards, including GS and ET certification, ensure safe operation for both people and machines.

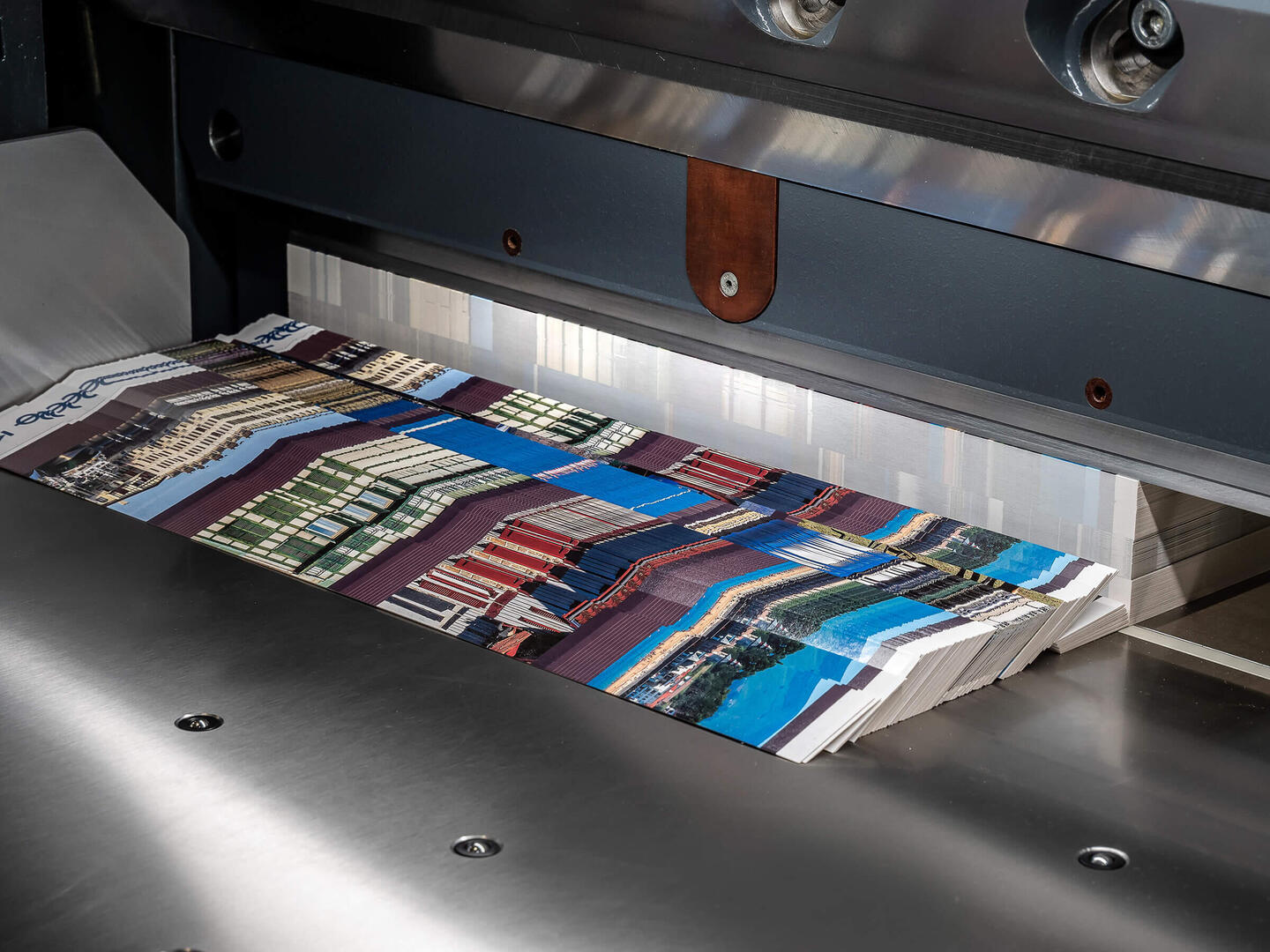

Perfect Cutting Results
PERFECTA cutting machines are characterized by precision and performance. Thanks to their ease of use and the real-time display showing the current job, the operator has full control over the cutting process at all times.
The newly developed cutting cell, featuring an innovative, active damping system, automatically regulates the cutting pressure, thereby ensuring longer blade life. This reduces costs for sharpening and replacement parts.

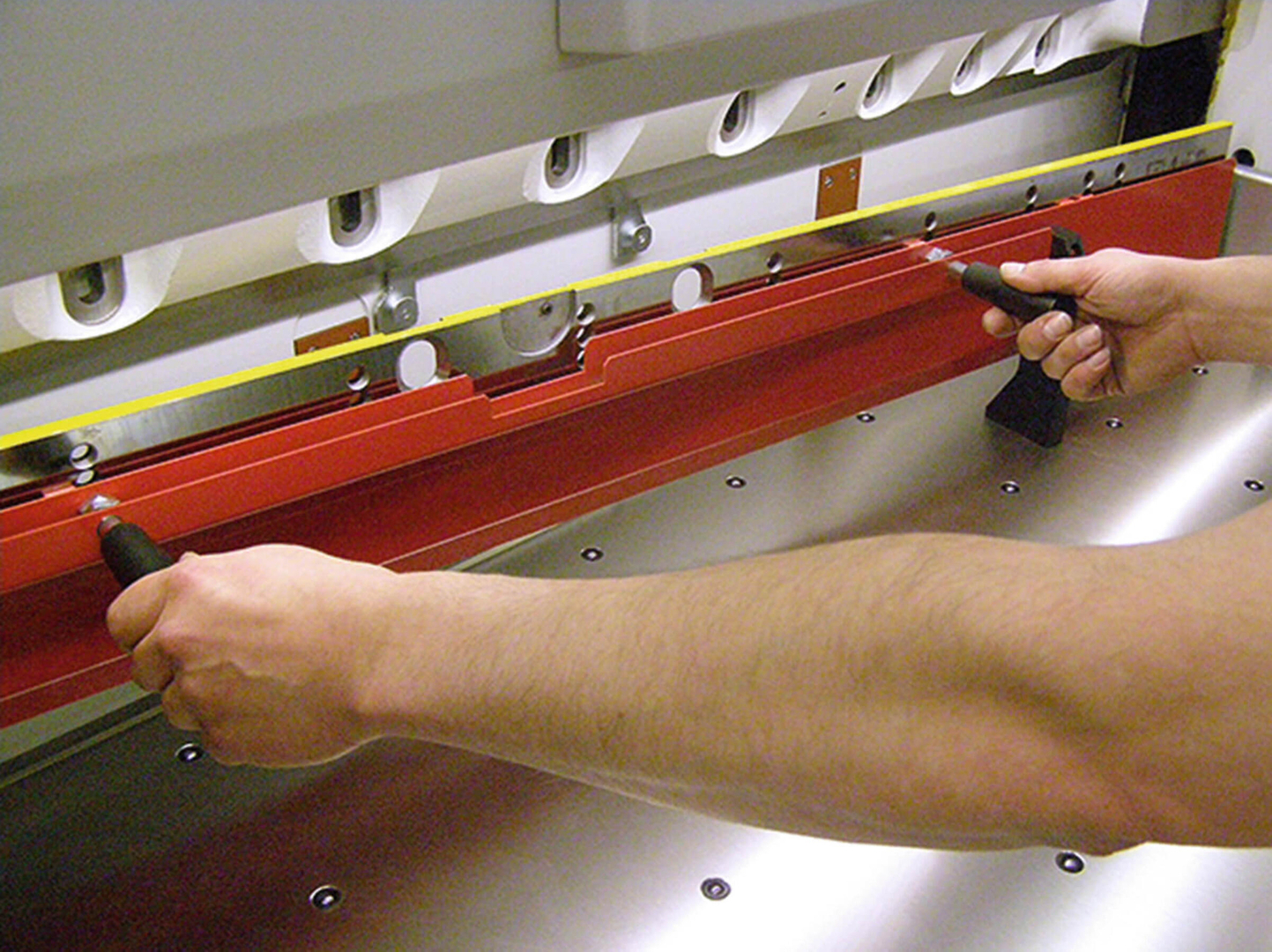

High Availability
The systems assist you with maintenance tasks such as blade replacement, lubrication, cleaning, etc., which are illustrated through operator-guided animations in the new control system. Additional sensors monitor the maintenance steps, thereby preventing errors and resulting downtime. This comprehensive service package is supported by the option of remote service via remote maintenance, enabling even faster response times.
In addition, each cutting system features an integrated, lockable tool cabinet where the operator can find the necessary tools for blade changes or maintenance tasks. Another new feature is the full-surface cover on the rear table, which prevents direct access to the saddle. The cover not only serves as a safety measure but also protects the drive spindle and the guide from dust and dirt.
