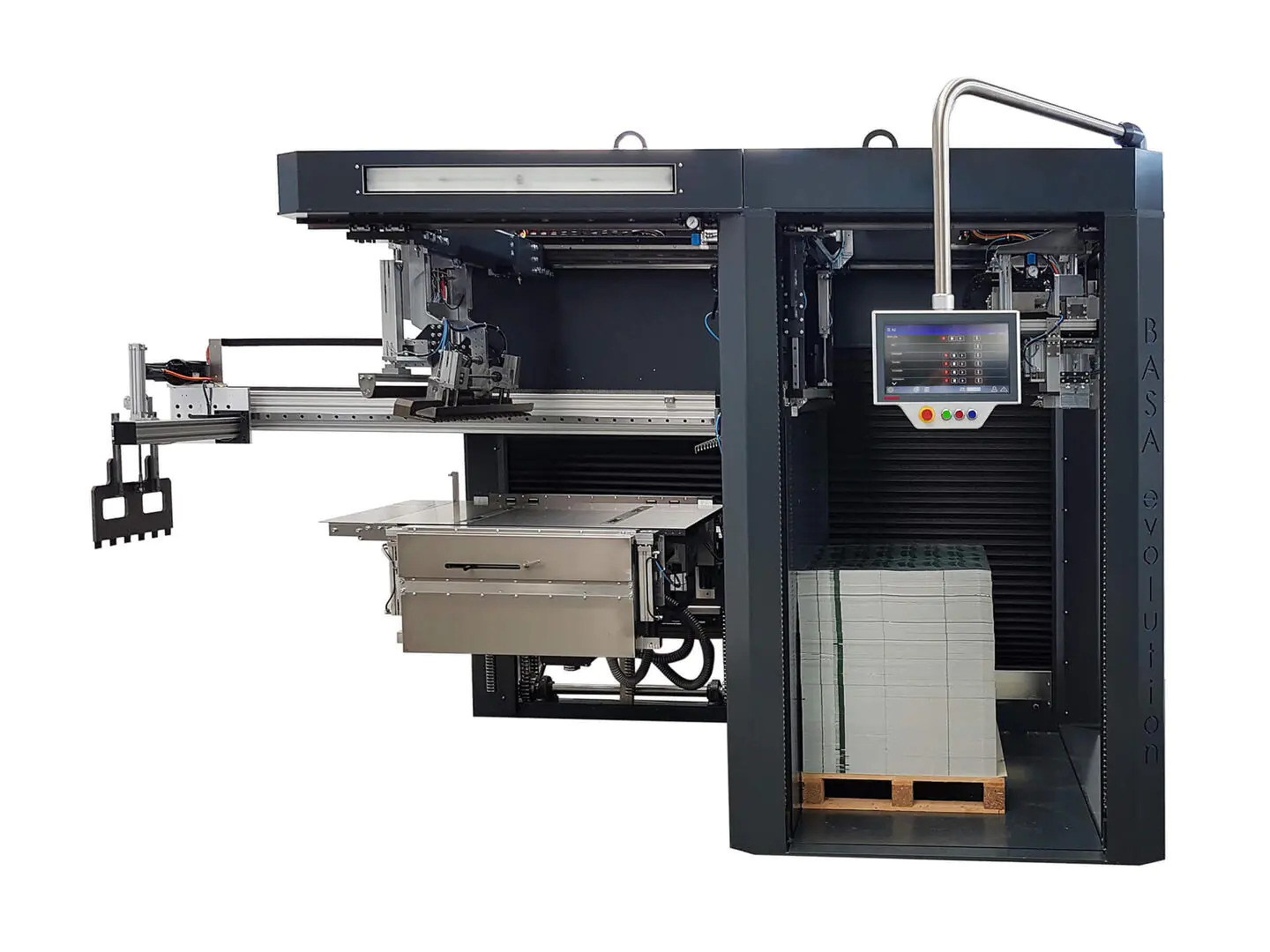

Automatic jogging machine BASA Evolution
Rely on innovative technology instead of muscle strength! The BASA evolution is the perfect automated solution for your finishing process – whether for the label production, packaging printing or for commercial printing. In the standard version, as low-cost starter version for the automatic jogging, the BASA evolution can be equipped with further options for a complete automated line. Depending on the features, the machine transfers jogged, aligned and pressed layers directly to the rear table of the high-speed cutter, to a buffer space or alternatively towards two cutters.
The BASA has been developed in Germany and is manufactured at our location in Solms, Hessen. The use of the latest and high-quality components and technology, as for example the Air Knife Technology for significantly reduced air consumption, guarantees a high availability of the system and, at the same time, a careful handling of the resources. The most modern drive technology in combination with intelligent controls ensure easy operation and low energy consumption. Moreover, the BASA evolution convinces due to the low footprint.
Product Features
-
Features
- Hoist loadable with piles from two sides
- Improved remote maintenance and service options in the event of errors
- Unloading pusher configurable with variable length, depending on system requirements
- Hoist with 4-point suspension
- Optimized transfer unit in the roller gripper
- Optimized partial layer aeration thanks to efficient air knife technology
- Infinitely variable, motorized inclination of the jogging table
- Increased inclination possibility up to 23°
- Smooth transition of the aerated partial layers from roller gripper to jogging table, without dropping height
-
Options
- Jogging to the right and left-hand side
- Side feeder
- Front feed with aeration
- Roller for pre-scalation
- Air-expulsion roller for low grammages
- Jogging table with layer stabilizer LEFT and/or RIGHT
- Ionisation
- Counting unit
- Separating unit with or without counting unit applicable
- Counting unit retrofittable
- Destacking up to the bottom sheet, even with overhanging pallets (only in combination with counting unit)
-
What is new
- Fundamentally revised design
- Very small footprint
- Significantly higher pressing power
- New drive technology with servo technology
- New Beckhoff drive with new HMI
- Breaking-up rollers with optimized aeration unit (Technology with very low air consumption)
Perfect Cutting Results
Proven jogging technology and significantly higher squeezing pressure ensure perfectly aligned reams, guaranteeing perfect cutting results at all times.
Simplest Operation
The completely redesigned user interface ensures very easy and intuitive operation. The use of state-of-the-art control technology guarantees a high level of security and reliability for the future.
High Availability
Due to continuous vibrations, the jogging process is a challenge for all components. For this reason, only the highest-quality components are used in the BASA evolution. High-performance bearings, optimized components, and improved servo technology guarantee high availability—even in 3-shift operation, around the clock.
Cost-Efficiency
In addition to allowing you to deploy your staff more effectively through the automated jogging process, the BASA evolution is optimized for the careful use of resources. State-of-the-art drive technology and the use of energy-saving technologies ensure the lowest consumption values.
